Passive Harmonic Filter

Passive Harmonic Filter
Ana Sayfa›Product›Power Quality Filters›Passive Harmonic Filter›Pasif Harmonik Filtre, THDi<%5, Anma Akımı 14A, Anma Gerilimi 11,5kV

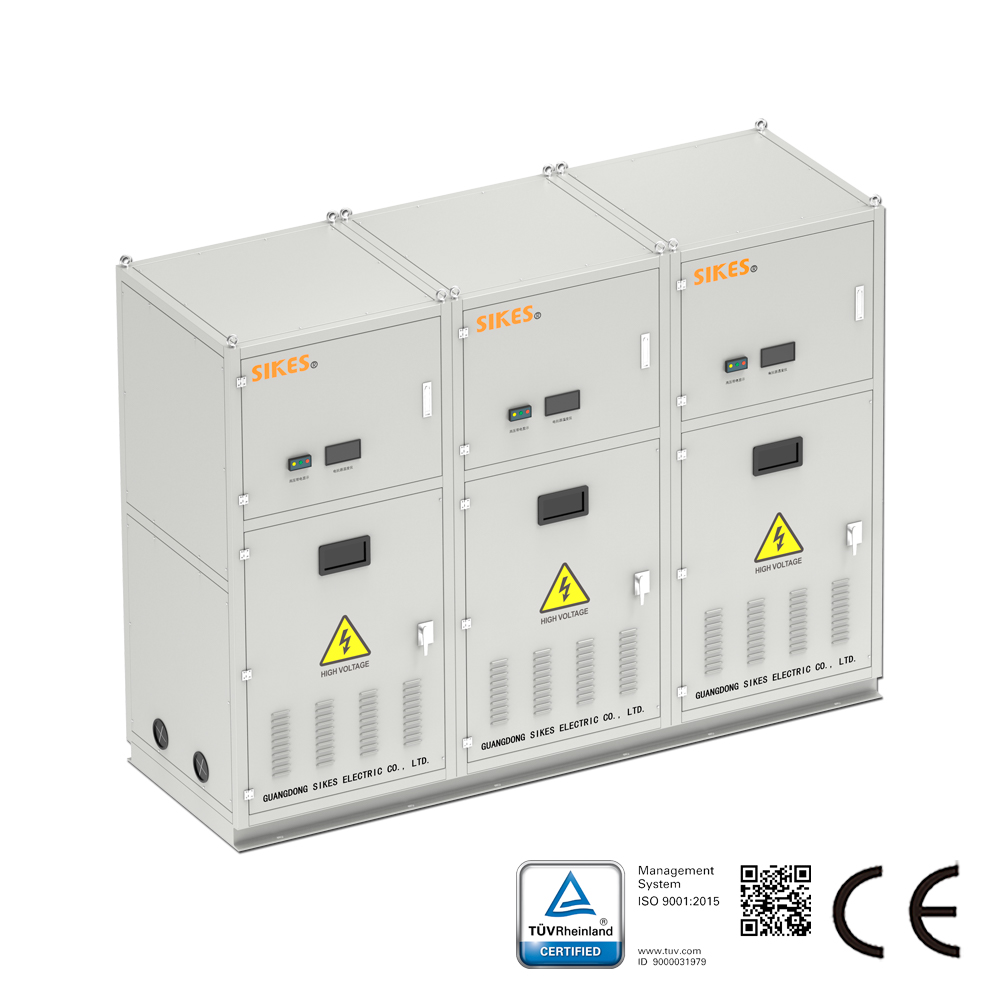

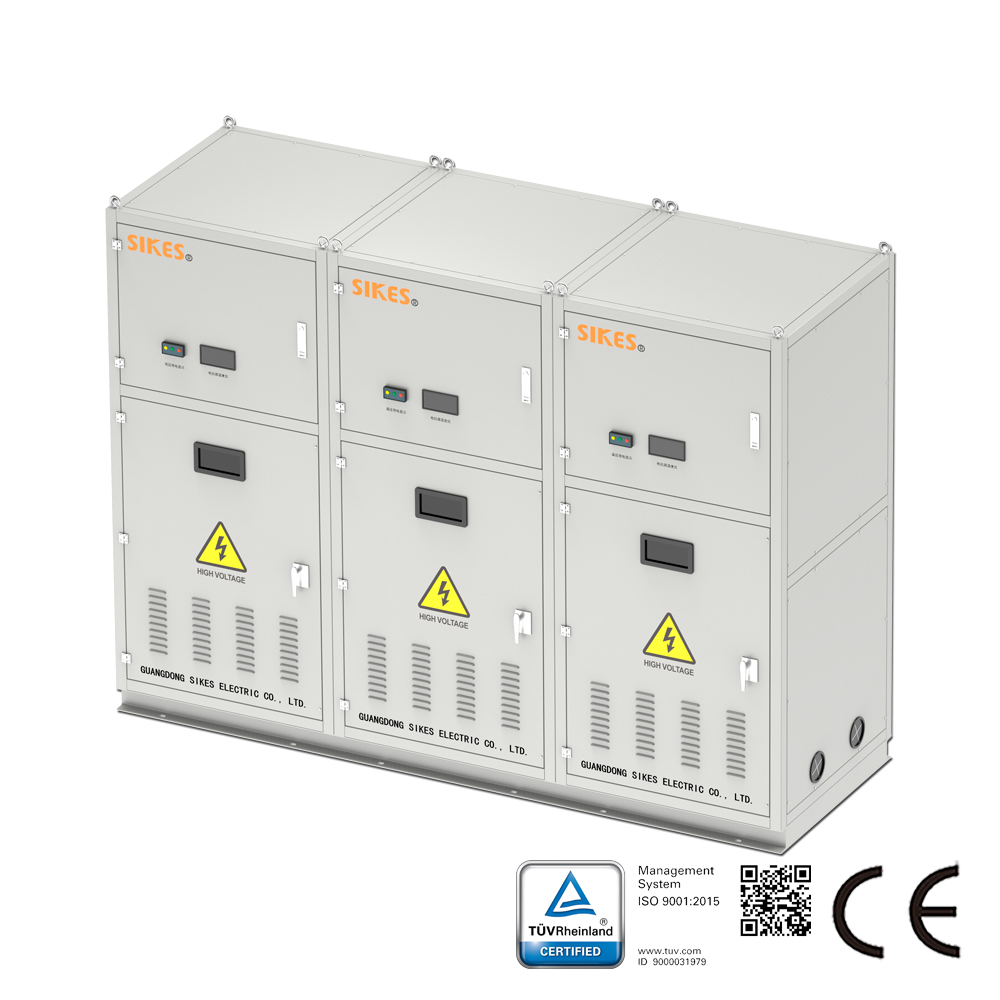

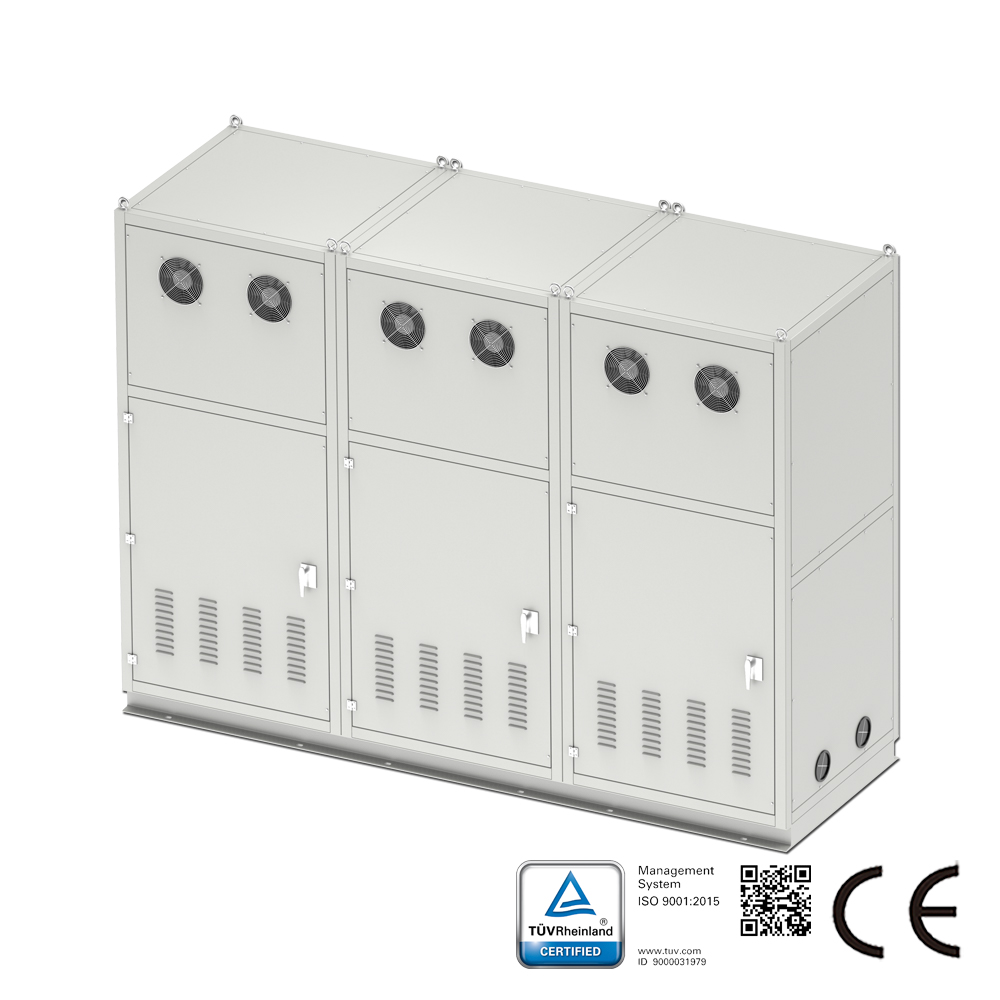

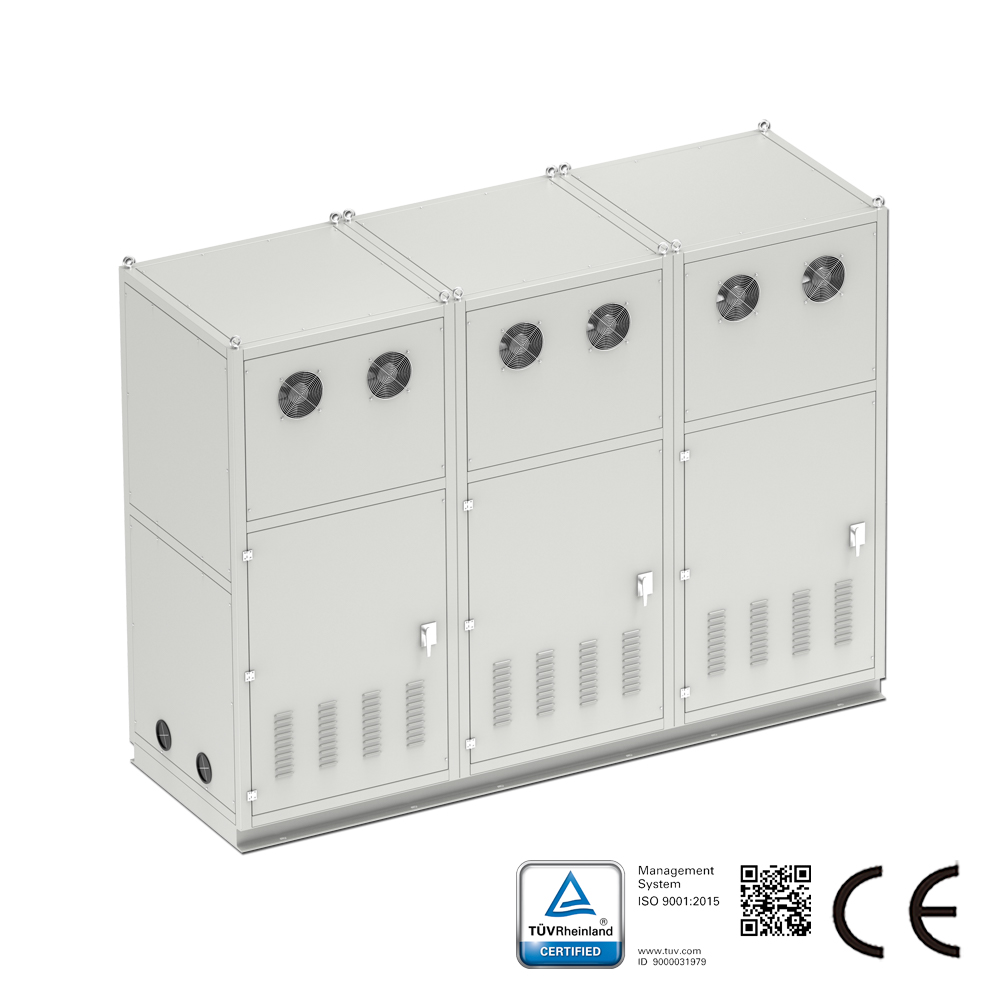

Pasif Harmonik Filtre, THDi<%5, Anma Akımı 14A, Anma Gerilimi 11,5kV

Model: SKS-HFI-0014-14C5/05-A0
Sikes pasif harmonik filtresi, altı darbeli ön uç doğrultuculu hemen hemen her tür elektronik uygulama için tasarlanmıştır. Filtre, harmonik akım bozulmasını gerekli seviyeye verimli bir şekilde azaltabilir.
Ürün veya Çözüm Talebi Canlı Sohbet
Paylaş:

Spesifikasyonlar

AC/DC AC
Bağlantı Bakır bara
IP Sınıfı IP20
Anma Akım Aralığı (A) 14
Anma Gerilim Aralığı (V) 11.5K
Çalışma frekansı 50 Hz
Faz 3 Faz
THDi <5%
Optik türü Pasif

Ürün Detayları

Sikes pasif harmonik filtresi, altı darbeli ön uç doğrultuculu hemen hemen her tür elektronik uygulama için tasarlanmıştır. Filtre, harmonik akım bozulmasını gerekli seviyeye verimli bir şekilde azaltabilir.

Özellikler

Passive Harmonic Filter Product Features:
Quick installation and easy commissioning design;
Cost-effective passive harmonic filter;
Helps to comply with international power quality standards.

Technical Standard:
IEC61000, GB/T14549-93, IEEE 519

Passive Harmonic Filter Technical Characteristics:
Norminal operating voltage:11.5KV;
Operating Frequency:50Hz(60Hz upon request);
THDi<<5% (system requirements:TDHv<2% ,line voltage unbalance<1%);
Efficiency:98% to 99% @ norminal line voltage;
Ambient temperature:-25 to +45℃.

Uygulamalar

Tipik uygulama: harmonik akımların neden olduğu termal ve elektriksel aşırı yük nedeniyle potansiyel riskin yüksek olduğu doğrusal olmayan üç fazlı güç kaynakları.

Pasif Harmonik Filtre Uygulamaları:
DC Hızlı Şarj Cihazları;
HVAC Tesisatları;
Fan ve pompa uygulamaları;
Endüstriyel otomasyon ve robotik ekipmanlar;
AC ve DC Motor sürücüleri & frekans invertörleri;
Altı darbeli ön uç doğrultuculu ekipmanlar.
